R series High standard Perfect design
indoor/outdoor
P1.9 / P2.5 / P3.9 / P4.8
Front & Rear module maintenance
Easy to replace module
Quick swappable power box
Replace in seconds with a quick release system
Serviceable from the back without tools
One man installation

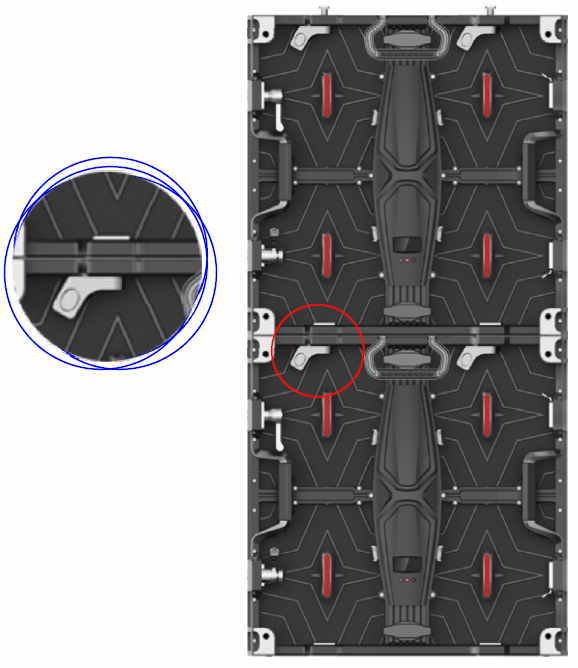

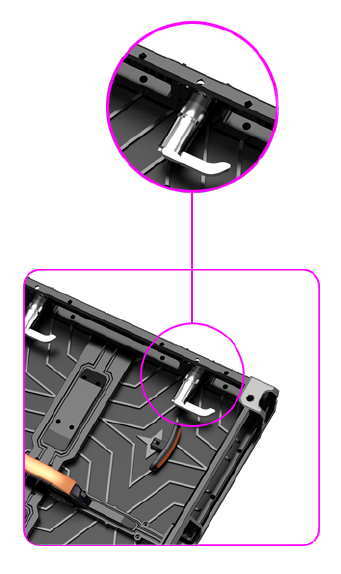

Quick and simple to use top locks
Designed for easy one man handling

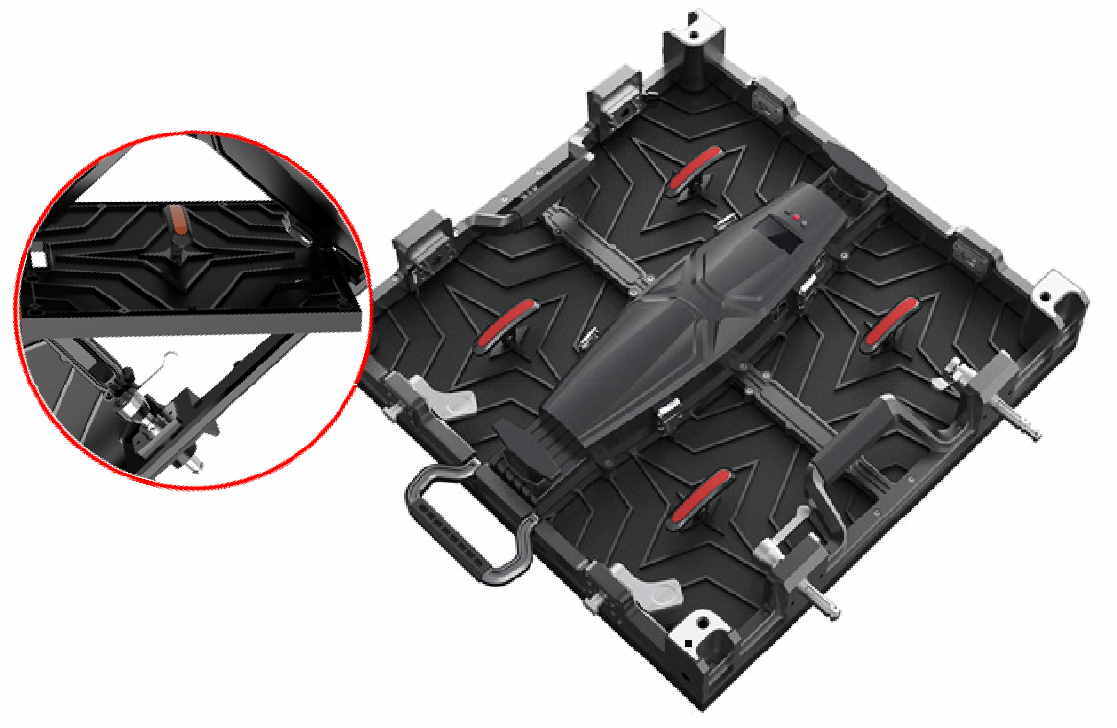

Cabinet locking system can connect the cabinet without any tools, quick installation with 5 seconds

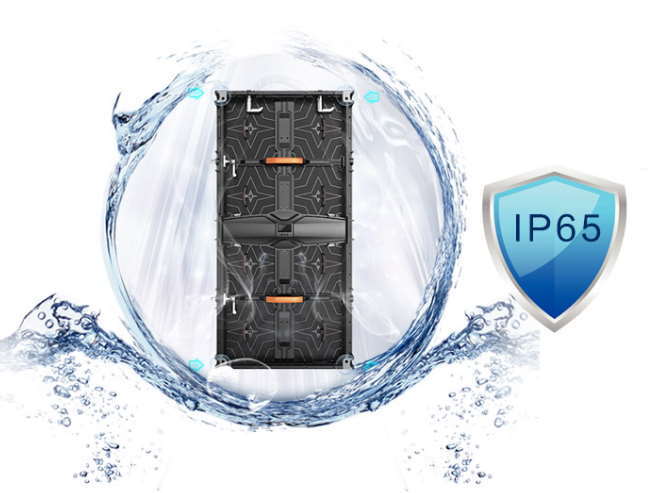

Cabinet is multi-waterproof design
Protection grade IP65,mature signal transmission, safer and more reliable.
PARAMETERS
Item | RD1.9 | RD2.5 | RD2.6 | RD2.9 | RD3.9 | RD4.8 |
Pixel pitch : mm | 1. 95 | 2. 5 | 2.604 | 2. 9 | 3. 9 | 4. 8 |
Resolution: dots/sq m | 262144 | 160000 | 147456 | 112896 | 65536 | 43264 |
Brightness : nits | 600 | 800 | 800 | 800 | 800/ 4500 | 800/ 4500 |
Refresh rate: Hz | 3840 | 3840 | 3840 | 3840 | 3840 | 3840 |
Viewing angle: degree | H/V 160 | H/V 160 | H/V 160 | H/V 160 | H/V 160 | H/V 160 |
Protection level: | IP 60 | IP 60 | IP 60 | IP 60 | IP 60/ 65 | IP 60/ 65 |
Average power: W/sq m | 200 | 200 | 200 | 200 | 200 | 200 |
Operating temp.: ℃ | ~30- 60 | ~30- 60 | ~30- 60 | ~30- 60 | ~30- 60 | ~30- 60 |
Module size: mm | 250X250 | 250X250 | 250X250 | 250X250 | 250X250 | 250X250 |
Module resolution: dots | 128X128 | 100X100 | 96X96 | 84X84 | 64X64 | 52X52 |
